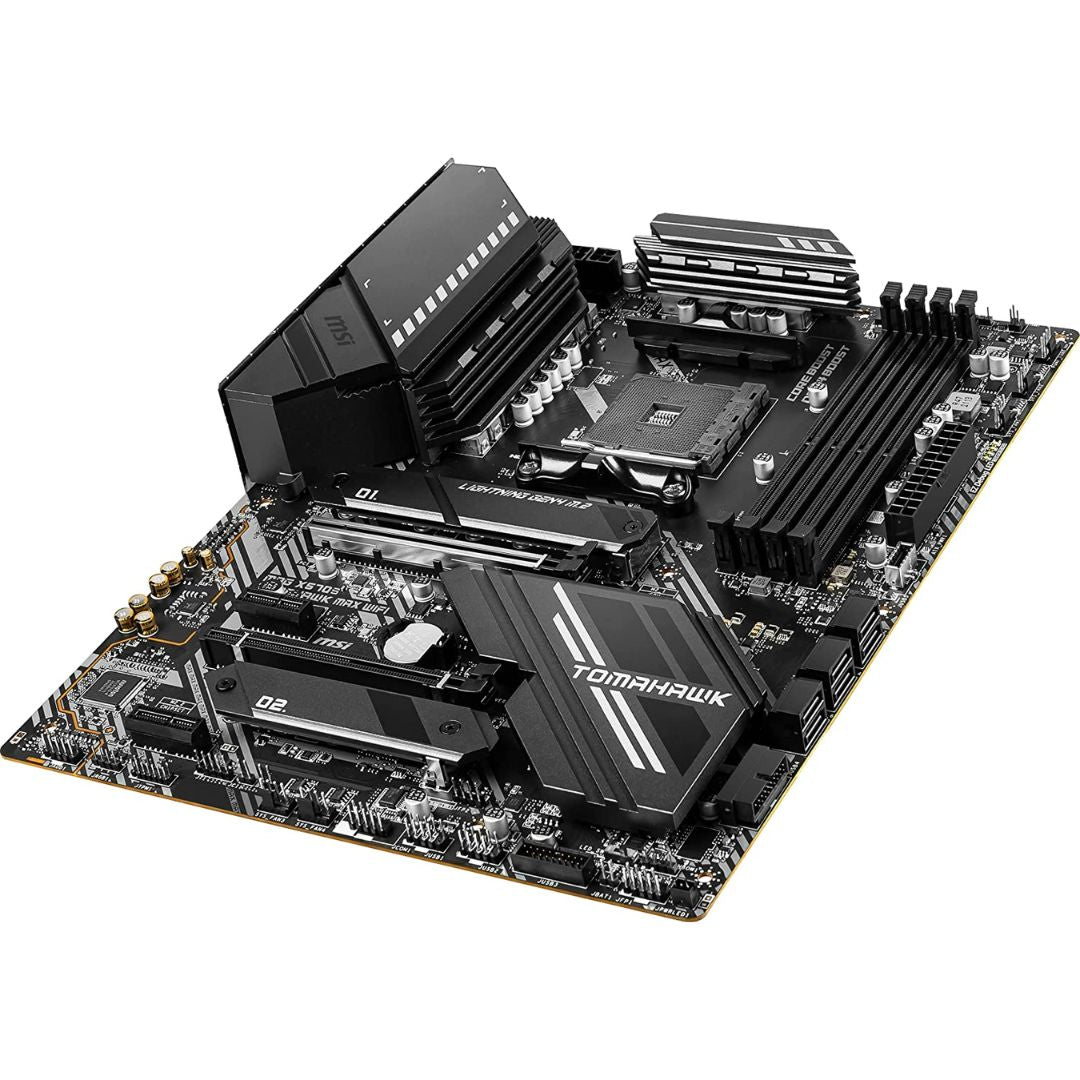

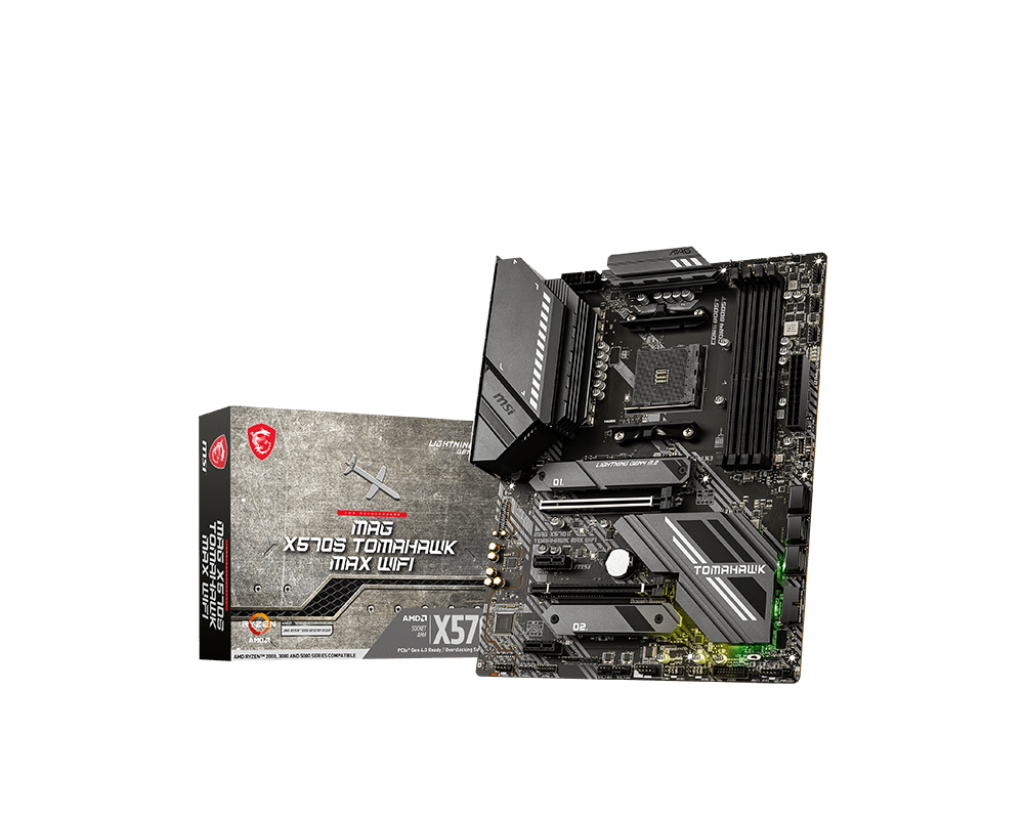

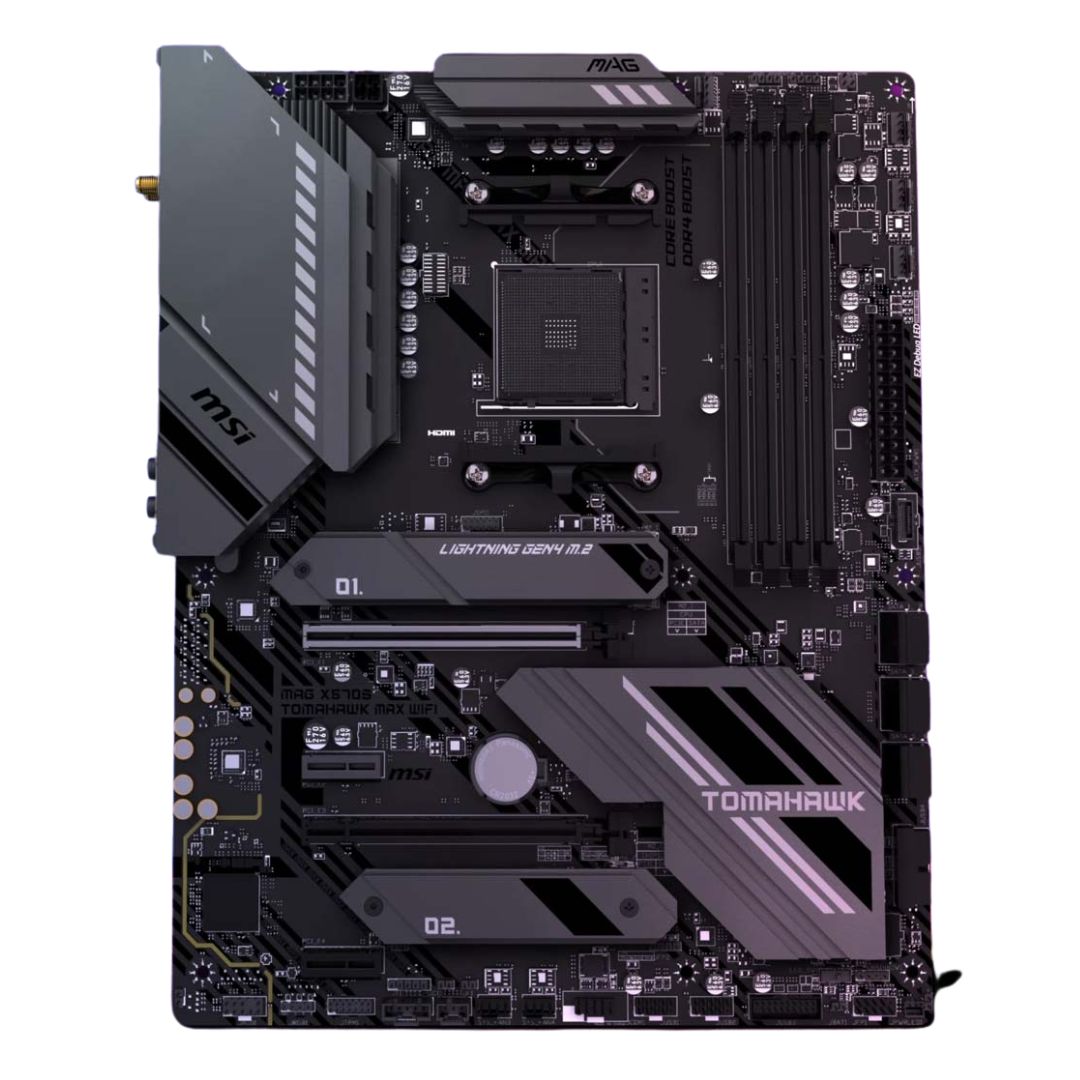

MSI MAG X570S Tomahawk Max WiFI (AM4) Motherboard

Socket AM4 Chipset X570(S) Form Factor ATX Voltage Regulator 14 Phase (12+2, 60A MOSFETs for Vcore) Video Ports (1) HDMI (v2.1) USB Ports (1) USB 3.2 Gen 2, Type- C (10 Gbps) Row 6 – Cell 0 (3) USB 3.2 Gen 2, Type-A (10 Gbps) Row 7 – Cell 0 (2) USB 3.2 Gen 1, Typ-A (5 Gbps) Row 8 – Cell 0 (2) USB 2.0 (480 Mbps) Network Jacks (1) 2.5 GbE Audio Jacks (5) Analog + SPDIF Legacy Ports/Jacks PS/2 Other Ports/Jack ✗ PCIe x16 (2) v4.0 (x16, x8/x8) PCIe x8 ✗ PCIe x4 ✗ PCIe x1 (2) v3.0 (x1) CrossFire/SLI AMD 2-Way CrossfireX DIMM slots (4) DDR4 5100(OC), 128GB Capacity M.2 slots (1) PCIe 4.0 x4 (64 Gbps) / PCIe + SATA (up to 110mm) Row 20 – Cell 0 (1) PCIe 4.0 x4 (64 Gbps) / PCIe + SATA (up to 80mm) U.2 Ports ✗ SATA Ports (6) SATA3 6 Gbps (RAID 0, 1 and 10) USB Headers (1) USB v3.2 Gen 2, Type-C (10 Gbps) Row 24 – Cell 0 (1) USB v3.2 Gen 1 (5 Gbps) Row 25 – Cell 0 (2) USB v2.0 (480 Mbps) Fan/Pump Headers (6) 4-Pin RGB Headers (2) aRGB (3-pin) Row 28 – Cell 0 (2) RGB (4-pin) Legacy Interfaces ✗ Other Interfaces FP-Audio Diagnostics Panel Post Status Checker (4 LEDs) Internal Button/Switch ✗ SATA Controllers ✗ Ethernet Controller(s) Realtek 8125B (2.5 Gbps) Wi-Fi / Bluetooth Intel AX210 Wi-Fi 6E (MU-MIMO/6GHz 160 MHz/FISMA/FIPS/BT 5.2) USB Controllers ✗ HD Audio Codec Realtek ALC4080 DDL/DTS Connect ✗ / ✗
